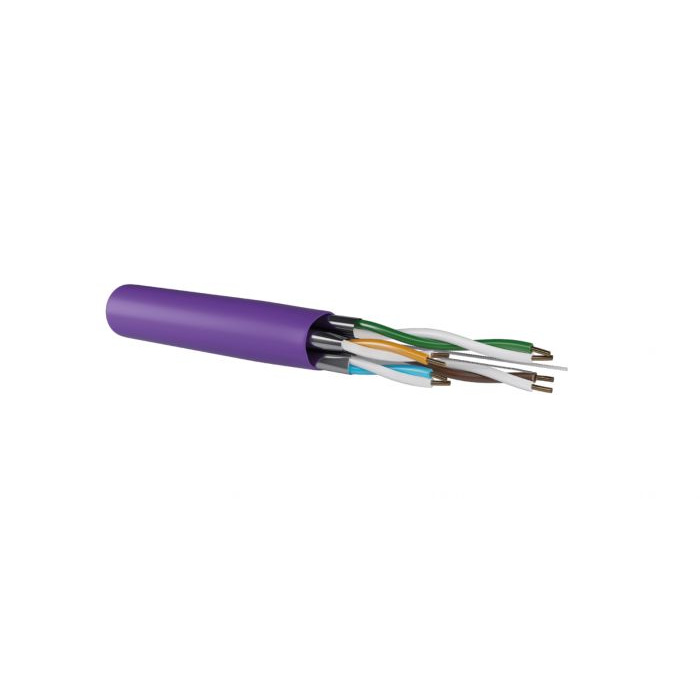

LAN Cable CAT6A U/FTP (AWG23, Solid Core, 700MHz), LSZH, Ø 7,4mm, Violet (CPR Cca-s1a,d1,a1)
List price : € 1.54 VAT excl.
CABLE CAT6A U/FTP - LSZH | INDOOR | Cca - AWG23 - 0.26mm² - VIOLET
Add to my wishlist
Shop
This product has been added to your wishlist.
| Reference : | CAT6AUF VI CCA |
|---|---|
| Supplier reference : | 82223222050C1 |
| Brand : | BARPA |
| Sold by : | 100 meter |
| Packaging : | 500 m/spool |
ENTERPRISE/DATA CENTER COPPER CABLE CAT6A U/FTP - LSZH -23 AWG - 0,56mm - 700MHz
The cable is individual screen for each pair to improve the quality of your permanent-link or channel. This cable is designed to Support all Class F protocols including 10GBASE-T, with a performance up to 700MHz tested in independent lab Force Technology.
DESCRIPTION
- Performance tested up to 700MHz in independent lab Force Technology
- Individual foil pairs
- Decreasing length cable markings - Easy identification of remaining cable reduces installation time and cable scrap
- Designed to Support all Class EA protocols including 10GBASE-T
- Supports Power Over Ethernet (PoE), Power Over Ethernet Plus (PoE+), High Power Ethernet (PoE++) and 4 Pair Power Over Ethernet (4PPoE) Applications.
DIAMETER
- Insulation diameter : 1,33mm
- External overall diameter : 7,4mm
APPLICABLE STANDARDS
Electrical Performance:• ISO/IEC 11801; • ISO/IEC 61156-5; • EN 50173; • EN 50288-10-1; • ANSI/ TIA-568-D.2;Reaction to fire:• IEC 60332-3-22; • IEC 60754; • IEC 61034; • EN 50267-2-3; • EN 13501-6; • EN ISO 1716:2010; • EN 50575;PoE:• IEEE 802.3bt PoE Type 1, 2, 3 and 4.
Link to the data sheet- Product Section : Cables (Bulk) > Network & Data > CAT6A
- Brand : BARPA
- Construction : Solid-core
- Jacket : LSZH
- Shielding : U/FTP
- Material : Copper (CU)
- Signal / CAT : CAT6A
- Network speed / Bandwith : 10 Gb/s | 700 MHz
- Colors : Violet
- Environment Properties : Cca | Indoor
- Section : AWG23
