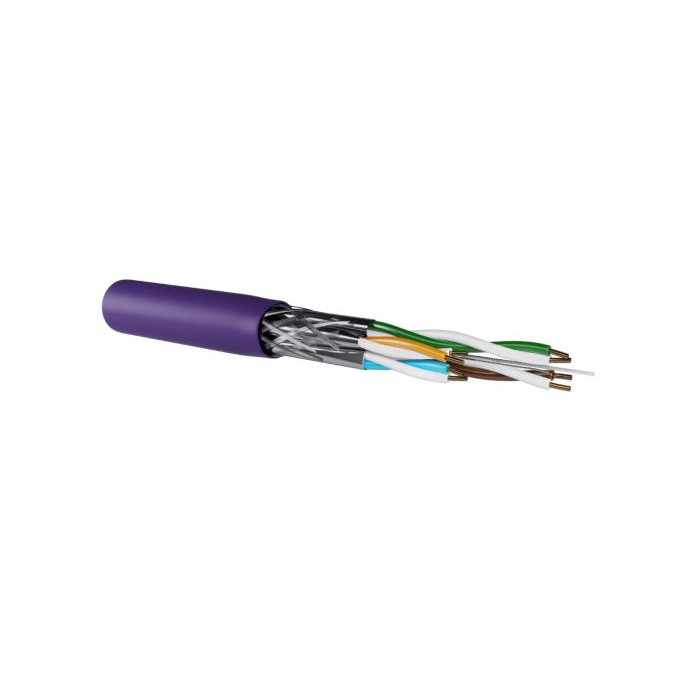

LAN Cable CAT6A S/FTP (AWG23, Solid Core, 700MHz), LSZH, Ø 7,6mm, Violet (CPR Cca-s1a,d1,a1)

List price : € 1.58 VAT excl.

CABLE CAT6A S/FTP - LSZH | INDOOR | Cca - AWG23 - 0.26mm² - VIOLET

Reference :	CAT6ASF VI CCA
Supplier reference :	82223422050C1
Brand :	BARPA
Sold by :	100 meter
Packaging :	500 m/spool

Data Sheet

ENTERPRISE/DATA CENTER COPPER CABLE CAT6A S/FTP - LSZH -23 AWG - 0,56mm

This LAN cable has an individual screen for each pair to improve the quality of your permanent-link. With 500MHz and 10G maximum performance, it was designed to withstand PoE, voice, video and Gigabit Ethernet.

DESCRIPTION

Performance specified up to 500MHz and tested up to 700MHz
Foiled pair by pair and overall screen to improve the cable performance
Decreasing length cable markings - Easy identification of remaining cable reduces installation time and cable scrap
Designed to Support all Class EA protocols including 10GBASE-T
Supports Power Over Ethernet (PoE), Power Over Ethernet Plus (PoE+), High Power Ethernet (PoE++) and 4 Pair Power Over Ethernet (4PPoE) Applications.

DIAMETER

Insulation diameter : 1,33mm
External overall diameter : 7,6mm

APPLICABLE STANDARDS

Electrical Performance:
ISO/IEC 11801; • ISO/IEC 61156-5; • EN 50173; • EN 50288-10-1;
ANSI/ TIA-568-D.2;

Reaction to fire:
IEC 60332-3-22; • IEC 60754; • IEC 61034; • EN 50267-2-3; • EN 13501-6;
EN ISO 1716:2010; • EN 50575;

PoE:
IEEE 802.3bt PoE Type 1, 2, 3 and 4.

Link to the data sheet
