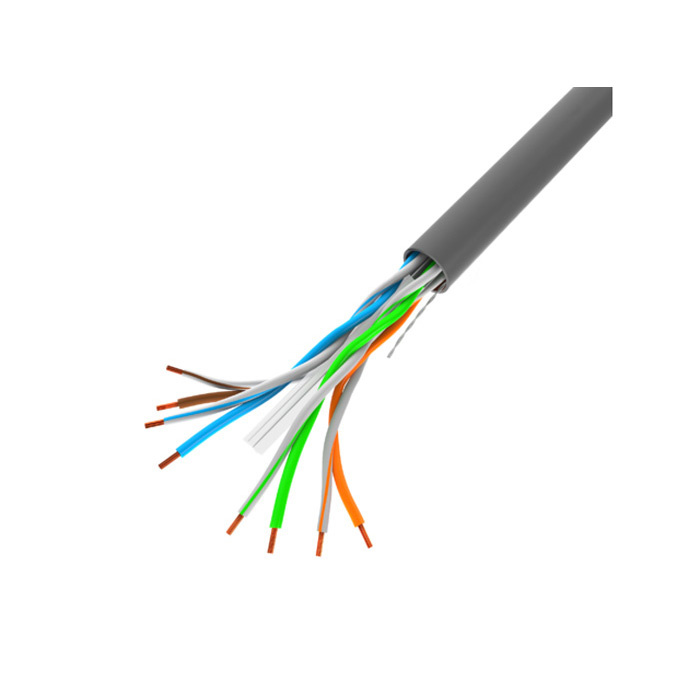

LAN Cable 1Gb/s (U/UTP, 24AWG), Solid Copper Cladded Aluminium, PVC, Ø 6,0mm, Grey

Product specification:

- LAN cable
- Data transmission rate: 1Gb/s
- Shielding: U/UTP (without shielding)
- Length 305m.
- The wires are made of copper conductor cable (CCA).
- AWG 23 (4*2*0.57mm).
- Conductor stranding: single wire.
- Color: grey RAL7035.
- Printed length counter at every meter of cable.
- External PVC insulation: 5.6mm.
- HDPE conductor insulation: 0.95mm.
- Operation up to 250Mhz.
- Package: cardboard box.
- Packaging dimensions (W x D x H): 38x24x38 cm.

Electrical characteristics (20 degrees):
- Conductor resistance : < 27 Om / 100m.
- Rating voltage: 30V
- Maximum load current: 0.5A.
- Transport and storage temperature: 0 - 60 degrees.
- Operating temperature: -20 - 75 degrees.
- Working distance: 100m.


PURPOSE: Cable only for division into shorter sections (up to 10m). Only for installation without fluke certification requirement (EN 50173).
