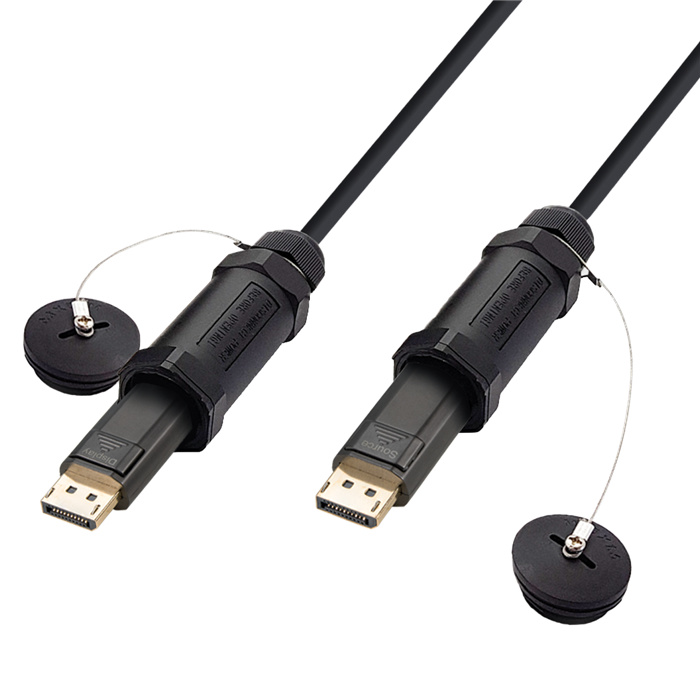

DisplayPort 1.4 AOC Steel-Armored Hybrid Cable, Male-to-Male, 2x IP Sleeve, 40m
List price : € 584.25 VAT excl.
DisplayPort 1.4 AOC hybrid cable m.-m. 2x IP-sleeve steel-armored
Add to my wishlist
Shop
This product has been added to your wishlist.
| Reference : | DPAOCBK40M |
|---|---|
| Supplier reference : | |
| Brand : | TTL Network |
| Sold by : | 1 pc |
| Packaging : | 1 pc |
Overview
The steel-armoured DisplayPort 1.4 AOC hybrid cable is designed for extremely demanding AV installations that require protection against compressive loads and harsh environmental conditions. The steel-armoured construction with Kevlar braiding, TPU jacket and IP protection offers high resistance to mechanical and environmental influences as well as compressive loads of up to 200 kg. The hybrid structure of fibre optics and copper enables stable transmission up to 8K @ 60 Hz over distances of up to 100 m.Also available on drumFeatures
- Range up to 100 m thanks to AOC hybrid technology.
- 32 Gbps high-speed: Maximum data rates guaranteed.
- Extremely robust: steel reinforcement and Kevlar mesh for protection against pressure and rodents.
- Durable: Robust metal connectors for harsh operating conditions.
- HBR3, HDCP 1.4/2.2
- Supports DP 1.4 with up to 8K @ 60 Hz
Specifications
- Resolution : up to 7860 x 4320
- Color space : 4:4:4, 4:2:2 and 4:2:0
- Outer jacket : TPU
- Outer diameter : 6.0±0.2mm
- Audio standard : Up to 32 audio channels for speakers / Up to 1536 kHz audiosampling rate
- Product Section : Cables (Premade) > Video > DisplayPort
- Brand : TTL Network
- Type : Armoured
- Jacket : PUR
- Length : 40M
- Signal / CAT : DP 1.4
- Colors : Black
- Connector 1 : DISPLAYPORT (M)
- Connector 2 : DISPLAYPORT (M)
